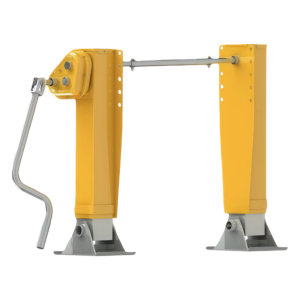

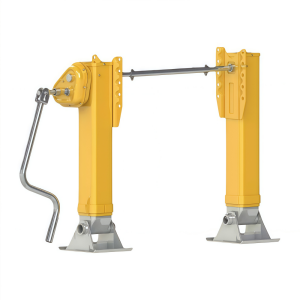

Landing Gear 28T

Landing Gear

  • LEADING TIME

    15-20 DAYS

  • SHIPPING METHOD

    AIR FREIGHT/ OCEAN FREIGHT

  • UNIT PACKAGING SIZE

    1000*400*600mm

Heavy-duty design ensures stable support even under full-load trailers. Fast lifting in low load, powerful lifting in full load. Made of premium Q345 steel for enhanced durability and impact resistance. Powder coating or galvanized finish for long-term anti-rust protection. Smooth gear transmission reduces effort during operation. Compatible with various semi-trailers and transport equipment.
GET A QUOTE RETUREN

SPEC

ParameterCommon size
Center-to-center distance between left and right support legs900mm
Mounting plate width140mm
Mounting plate height160mm
Thickness of mounting plate8-10mm
Mounting hole diameterØ17–21mm
Horizontal shaft diameterØ40–45mm

Trailer Landing Gear / Semi Trailer Support Leg
Material: High-strength steel (Q345 / Q235 optional)
Lift Capacity: 20T / 25T / 28T / 30T
Static Load Capacity: 50T – 80T
Gear Type: Single-speed / Two-speed gearbox
Operation: Manual crank / Optional electric
Travel Stroke: 400mm – 500mm
Surface Treatment: Powder coating / Painting / Galvanized
Color: Black / Red / Customizable
Mounting Type: Welded / Bolt-on
Application: Semi trailers, flatbed trailers, tanker trailers, lowbed trailers
