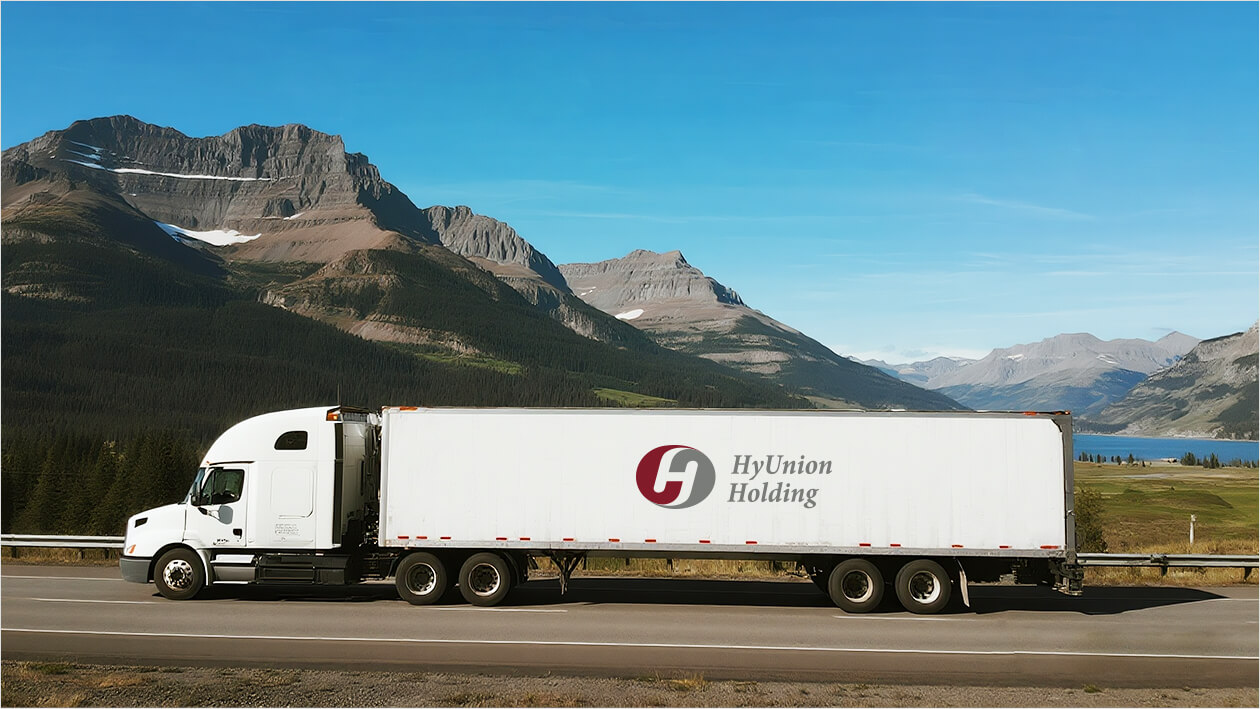

This high-performance reefer trailer is designed for reliable cold chain transportation. With overall dimensions of 13,600 × 2,600 × 4,000 mm, it features a robust insulated structure for superior thermal efficiency. The floor is available in grooved steel or aluminum alloy, both with 64mm polyurethane insulation. Side panels (60mm or 76mm), roof (76mm or 100mm), and front wall (90mm or 100mm) ensure optimal temperature retention. The trailer includes one or two side doors (2,000 × 1,300 mm) for easy loading. Its exterior is made of pre-painted aluminum alloy, while the interior uses durable thermoplastic panels. It supports a range of front-mounted refrigeration units from brands like Carrier, Thermo King, SuperCool, and KaiXue. A built-in air duct and recessed side ventilation ensure even airflow and consistent cooling throughout the cargo space, making it ideal for transporting temperature-sensitive goods across long distances.
INTRODUCE

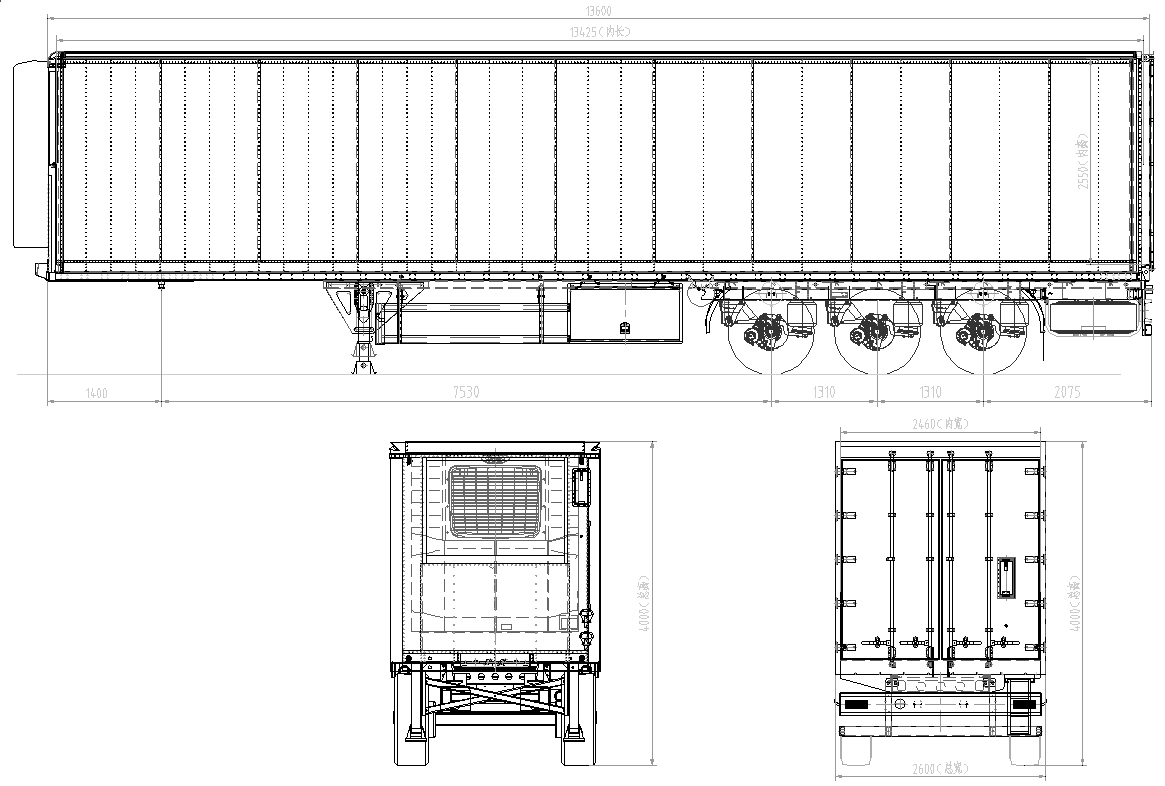

CAD DRAWING
SPEC
| Body Dimensions | 13,600 × 2,600 × 4,000 mm |
| Floor Specification | Grooved steel floor, flush upper or lower surface, with 64mm polyurethane insulation Optional aluminum alloy flat floor, also with 64mm insulation |
| Side Panel Thickness | 60mm or 76mm |
| Roof Panel Thickness | 76mm or 100mm |
| Front Wall Thickness | 90mm or 100mm |
| Side Door Dimensions | 2,000 mm (H) × 1,300 mm (W), single-opening; optional configuration of one or two doors |
| Exterior Panel Material | re-painted aluminum alloy sheet |
| Interior Panel Material | Thermoplastic sheet |
| Refrigeration Unit | Compatible with multiple front-mounted transport refrigeration models, including Carrier, Thermo King, SuperCool, and KaiXue, to meet various operational needs |
| Side Panel Ventilation | Integrated recessed ventilation channel in side panels ensures smooth cold air circulation |
| Ceiling Air Duct | Equipped with standard air duct for land-transport refrigeration units |
